Session Life Cycle

The iOS SDK provides a flexible transfer mechanism with built in retry functionality. The various state changes and associated events that occur when a session runs are detailed in the next sections. For the last two assume a retry policy is in place that allows only one retry.

For brevity, callback method names are shown without the prefix "queue:" or suffix "AtIndexPath:". Furthermore, the callbacks [will|did]ActivateSession, [will|did]StartRunningSession, [will|did]StopRunningSession and [will|did]DeactivateSession are only shown in the first diagram even though these are invoked in the equivalent points in the other diagrams as well.

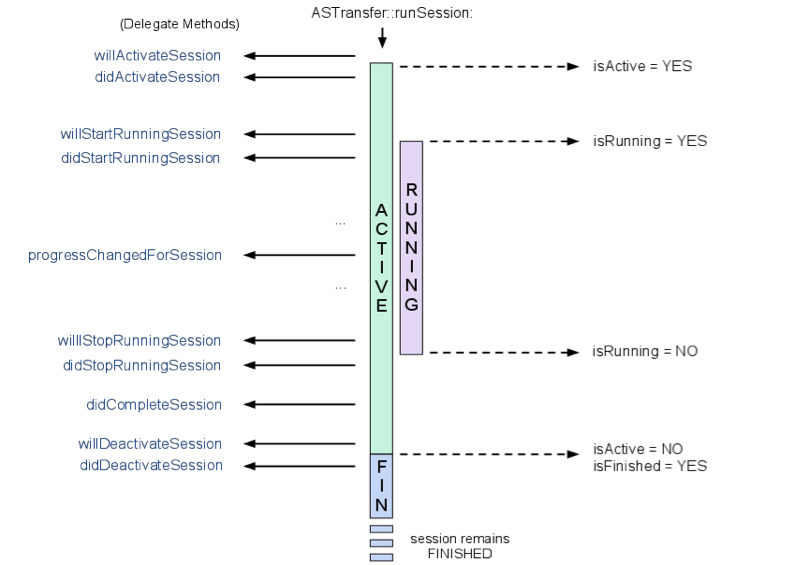

Successfully Completed Session

Stopped Session

Cancelled Session

Failure, Retry, Success

Note: if the failure occurs during the connection or authentication stages, didStartRunningSession and willStopRunningSession will not be invoked (the invocation sequence will then be willStartRunningSession followed by didStopRunningSession)

Failure, Retry, Failure
