Simplify IBM Guardium Key Lifecycle Manager server administration using IBM watsonx Assistant

Organizations are increasingly adopting intelligent systems to streamline processes and enhance user experiences. The integration of IBM watsonx Assistant with IBM Guardium Key Life Cycle Manager takes this integration to a new level. By enabling a chatbot interface to perform key management tasks traditionally handled through a console, this solution empowers an IT security analyst, compliance officer, data protection manager, or other security professional to manage and monitor encryption processes with ease.

Guardium Key Life Cycle Manager offers robust functionality for key life cycle management, key backup, recovery, and auditing of sensitive data. However, Guardium Key Life Cycle Manager’s REST APIs are often underutilized for everyday tasks that could be performed more seamlessly.

The solution presented here integrates IBM watsonx Assistant with Guardium Key Life Cycle Manager, allowing users to manage keys, check server health, verify backups, retrieve user details, and even address common configuration questions—all through a simple, natural language chat interface. This chatbot will serve as a virtual assistant that interacts directly with the Guardium Key Life Cycle Manager console, enhancing the user experience and providing security professionals and administrators with a more efficient way to perform tasks.

Key challenges

Guardium Key Life Cycle Manager’s REST APIs provide powerful capabilities but are often under-utilized because users have to interact directly with the Guardium Key Life Cycle Manager console. Logging into the console can be time-consuming and inefficient for:

• Manual key management: Security professionals often need to manually initiate tasks like key creation, rotation, deactivation which can be time-consuming.
• Manual efforts for routine checks: Checking the health of servers, initiating backups, or verifying user roles often requires users to log into the Guardium Key Life Cycle Manager console and manually perform these checks. The need to constantly switch between different tabs to ensure key management and server health adds to the administrative burden.
• Time-consuming documentation searches for simple queries: Users might need to quickly check specific configuration steps in a Guardium Key Life Cycle Manager document. However, instead of getting an immediate answer, they have to navigate through multiple sections and lose time searching for the relevant information. This process can be frustrating and inefficient, especially when the answer could be provided in seconds through a more streamlined interface.

These scenarios highlight the need for a more efficient way to interact with Guardium Key Life Cycle Manager. By integrating IBM watsonx Assistant, you can perform these tasks more effectively, bypassing the traditional console interaction and streamlining your workflows.

Benefits

Benefits of the integration include:

• Enhanced user experience: You can perform key management functions through a chat interface, making the process more intuitive and reducing the need for complex navigation within the Guardium Key Life Cycle Manager console.
• Increased efficiency: The chat interface streamlines workflows by enabling you to quickly perform actions and retrieve data, reducing task completion time.
• Real-Time Monitoring: The assistant can offer real-time updates on system health, backup status, key management, and more. You can quickly inquire about server health or check whether a backup was successfully completed without needing to manually access the Guardium Key Life Cycle Manager console.
• Streamlining Guardium Key Lifecycle Manager configuration queries using the RAG approach: You can ask the chatbot for information such as configuration, installation, and support matrix queries without going through vast documents.

Components

The integration leverages the following technologies to provide a seamless user experience:

IBM Guardium Key Life Cycle

IBM Guardium Key Lifecycle Manager is an encryption key management tool that centralizes, simplifies and automates the key management process. It offers robust and security-rich key storage, key serving, and key lifecycle management for self-encrypting applications and solutions by using interoperability protocols, including KMIP, IPP, and REST APIs.

IBM watsonx assistant

IBM watsonx Assistant is a conversational AI platform to help you provide support to prospects, customers, and employees. It's powered by large language models (LLMs) you can trust and an intuitive user interface. IBM watsonx Assistant helps you build AI-powered voice agents and chatbots that deliver automated self-service support across all channels and touch-points with seamless tool integration.

IBM watsonx.ai (RAG approach)

Retrieval-augmented generation (RAG) is an AI framework that enhances LLMs by integrating external, up-to-date knowledge to generate more accurate and verifiable responses. In the RAG process, the model first retrieves relevant information from external sources, then stores it in vector databases which efficiently index, store, and retrieve data. The model then generates a response using both the retrieved content and its internal knowledge. This method improves the quality of answers, reduces errors, and ensures factual accuracy.

RAG also reduces the need for constant retraining by dynamically pulling new information, making it more efficient and cost-effective. In this case, we have used Guardium Key Life Cycle Manager documentation as a data source stored in a Milvus database. We have used the granite-13b-instruct model for performing Q/A regarding Guardium Key Life Cycle Manager.

IBM Cloud Code Engine

IBM Cloud Code Engine is a fully managed, serverless platform. It manages and secures the underlying infrastructure for container images, batch jobs, source code, or functions. You don't need to size, deploy, or scale container clusters yourself, and no networking skills are required.

OpenAPI

The OpenAPI initiative establishes an open standard for describing and documenting REST APIs. An OpenAPI document defines the resources and operations that are supported by an API, including request parameters and response data, along with details such as server URLs and authentication methods.

An OpenAPI document describes a REST API in terms of paths and operations. A path identifies a particular resource that can be accessed by using the API (for example, a hotel reservation or a customer record). An operation defines a particular action that can be performed on that resource (such as creating, retrieving, updating, or deleting it).

Workflow

1. User interaction: The process begins with the user invoking the Guardium chatbot by entering a prompt, such as "Guardium Key Lifecycle Manager". The chatbot will ask the user to select from the following options: "Guardium Key Life Cycle Manager server details" or "Guardium Key Life Cycle Manager general information".
2. Option listing: If the user selects "Guardium Key Life Cycle Manager server details", the chatbot responds by presenting a list of available options that the user can perform, such as accessing specific Guardium Key Lifecycle Manager key functions, retrieving server details, retrieving back and restore details, and so on.
3. User selection: The user selects an option from the list provided by the chatbot.
4. Custom extension invocation: Upon selection, the Guardium chatbot triggers a custom extension, which is written in OpenAPI. This extension serves as a bridge, invoking the necessary code deployed in IBM Cloud Code Engine through a predefined IBM Cloud Code Engine endpoint.
5. Information retrieval: The invoked code performs the action by invoking APIs and then gathers the required information from Guardium Key Lifecycle Manager and returns the results to the chatbot interface.
6. IBM watsonx.ai RAG for answering Guardium Key Life Cycle Manager common questions: If the user selects the "Guardium Key Lifecycle Manager general information " option, the chatbot will prompt the user to provide a question. When the user enters the question, watsonx Assistant invokes the IBM Cloud Code Engine endpoint, which fetches the data from the Milvus database and provides the related information as a response.
7. Result delivery: The answer is sent back to the chatbot interface for the user to review.

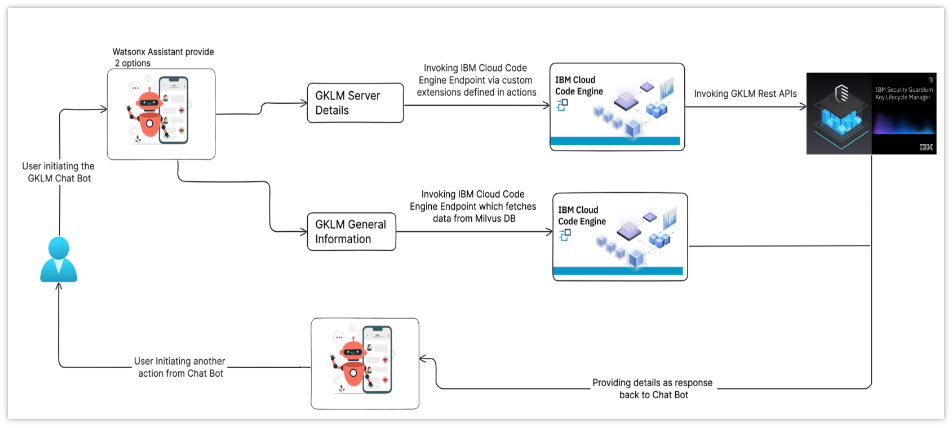

Workflow diagram

Demo

Following is a demo of the Guardium chatbot:

Deploying the Guardium Key Lifecycle Manager chatbot

To deploy the Guardium chatbot, follow the instructions provided in this GitHub repository.

Summary

Integrating IBM watsonx Assistant with Guardium Key Lifecycle Manager provides security professionals, administrators, and compliance officers with an innovative way to interact with the system. By leveraging watsonx Assistant’s conversational capabilities, you can manage encryption keys, perform server health checks, verify backup status, and retrieve user information through a streamlined and intuitive chat interface. This integration significantly enhances user efficiency and reduces the complexities of traditional key management.

With the added benefit of answering Guardium Key Lifecycle Manager configuration queries through a RAG-based approach, this solution not only simplifies the key management process but also aligns with the business goals of automating security operations and improving productivity.
